M1-M30 Stainless Steel Rivet Nut High Corrosion Resistance For Metal

Product Categories
Suzhou Runtai Precision Hardware Co,.Ltd.
Contact Now

M1-M30 Stainless Steel Rivet Nut High Corrosion Resistance For Metal

  • 1
  • 2
  • 3

Brand Name : Runtai

Model Number : Rivet Nuts

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5 Ton/days

Delivery Time : 14-21 days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : steel Stainless Steel Red Copper Aluminum Alloy For Choose

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : Zinc plated, nickel plated, black phosphates for choose

Products Name : Stainless Steel Flat Round Head Half Hex Rivet Nuts

Port : Shanghai

Contact Now

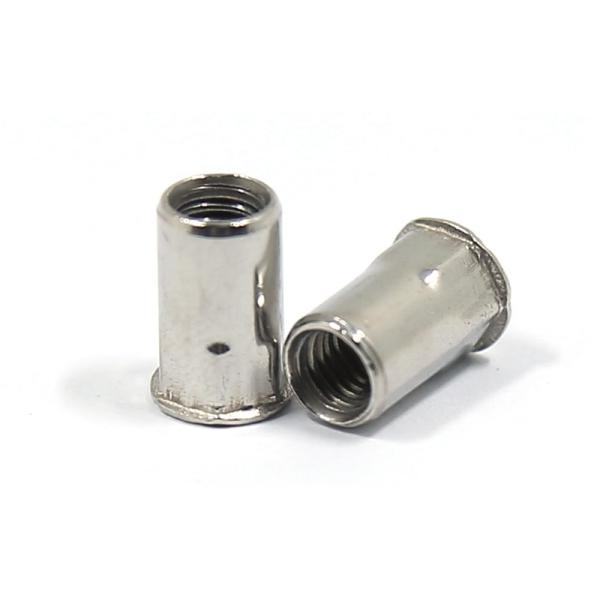

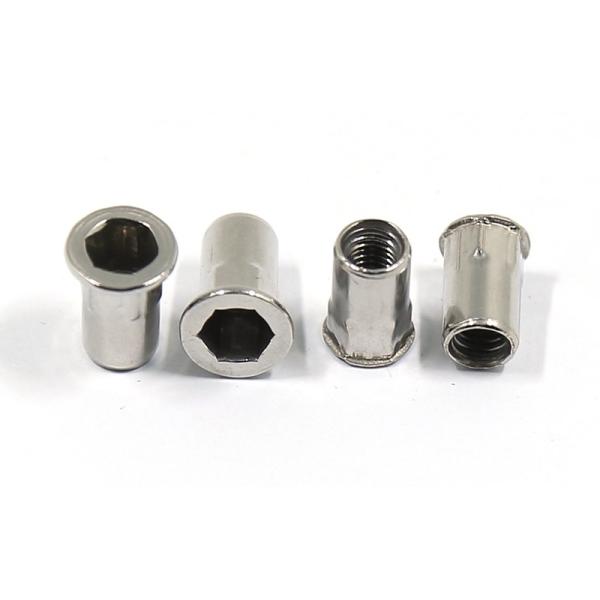

Stainless Steel Flat Round Head Half Hex Rivet Nuts Heavy Duty Twist-Resistant Rivet Nut

Products Descriptions

A hex-shaped body provides the highest twist resistance of any rivet nut. They're stainless steel for high corrosion resistance.Install in a drilled hole with a lever-style or power-driven rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Products Specifications

Material Zinc-Plated Steel
Thread
Size M10
Pitch 1.5 mm
Type Metric
Spacing Coarse
Thread Fit Class 6H
Direction Right Hand
Drill Bit Size 13 mm
Drill Bit Decimal Size Equivalent 0.4331"
For Material Thickness 1.000 to 4.500 mm
Body
Type Hex
Diameter 13.00 mm
Length 23.1 mm
Installed Length 17.500 mm
Flange
Diameter 19
Thickness 2 mm
Nut Type Rivet
End Type Open
For Use In Metal
RoHS Compliant

More Products Pictures

M1-M30 Stainless Steel Rivet Nut High Corrosion Resistance For MetalM1-M30 Stainless Steel Rivet Nut High Corrosion Resistance For Metal
