Class 8.8 Zinc Plated Socket Head Cap Screws , Flanged Socket Head Bolt

Product Categories

Suzhou Runtai Precision Hardware Co,.Ltd.

Contact Now

Class 8.8 Zinc Plated Socket Head Cap Screws , Flanged Socket Head Bolt

Name: Class 88 Zinc Plated Socket Head Cap Screws Flanged Socket Head Bolt
Brand: Runtai
Price: 1 USD

Quality Class 8.8 Zinc Plated Socket Head Cap Screws , Flanged Socket Head Bolt for sale

Brand Name : Runtai

Model Number : Flanged Socket Head Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : Class 8.8 Zinc Plated Steel Flanged Socket Head Screws

Contact Now

Class 8.8 Zinc Plated Steel Flanged Socket Head Screws Socket Head Cap Flanged Screws

Products Description

Eliminate the need for a separate washer—these screws distribute pressure where the screw meets the surface without taking up as much space as a washer. Made of alloy steel, they are stronger than stainless steel screws. Their zinc plated finish provides mild corrosion resistance in wet environments. Head height includes the flange. Length is measured from under the flange.

Products Specification

Thread Size	M6
Thread Pitch	1 mm
Length	25mm
Threading	Fully Threaded
Thread Spacing	Coarse
Head
Diameter	10mm
Height	6mm
Flange Diameter	12.5mm
Drive Size	5 mm
Material	Zinc Plated Alloy Steel
Hardness	Rockwell C39
Tensile Strength	170,000 psi
Thread Type	Metric
Thread Fit	Class 6g
Thread Direction	Right Hand
Head Type	Socket
Socket Head Profile	Standard
Drive Style	Hex
Screw Features	Flanged
System of Measurement	Metric
Fastener Strength Grade/Class	Class 8.8
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

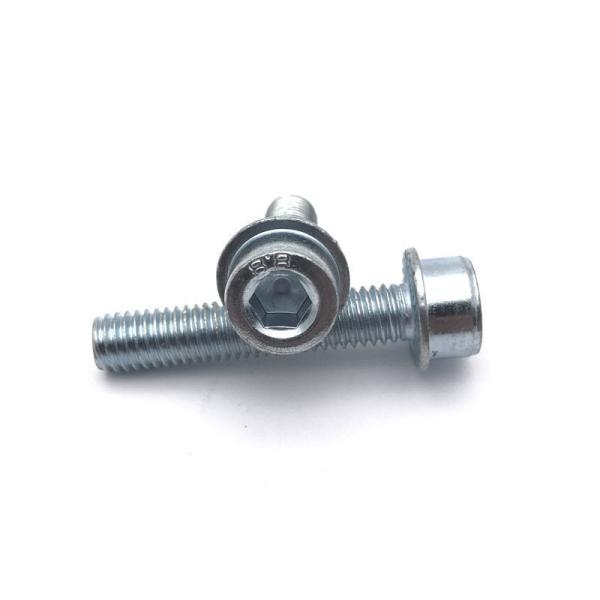

Class 8.8 Zinc Plated Socket Head Cap Screws , Flanged Socket Head Bolt
